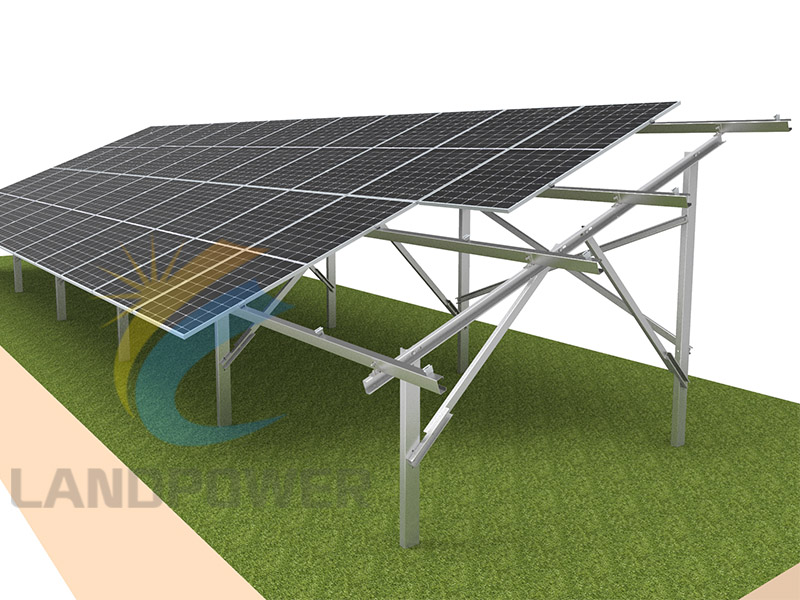

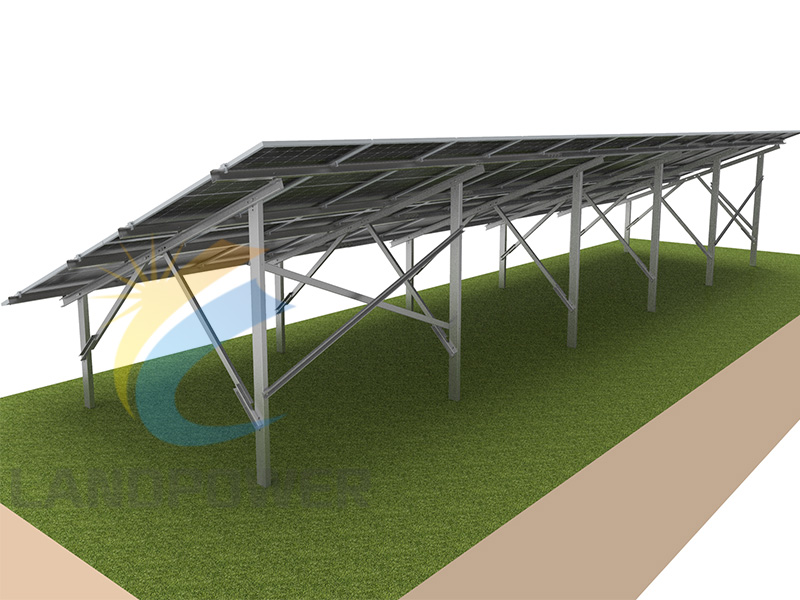

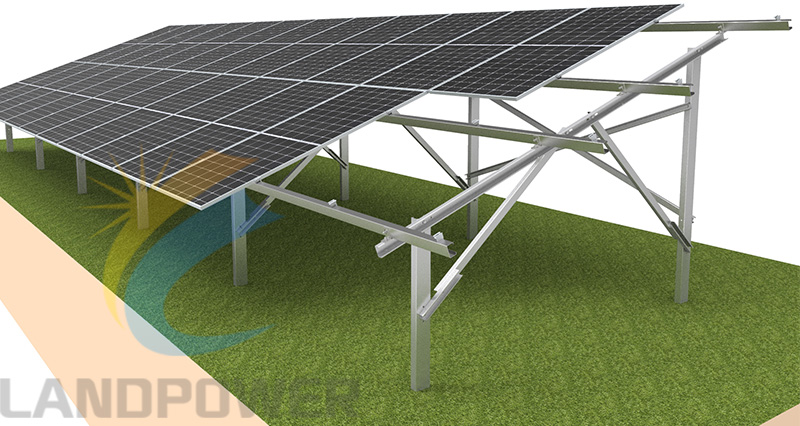

The Pile Driven Steel Ground Mount Structure, MG-Al-Zn coated steel, offering superior corrosion resistance and longer lifespan, now at a lower cost than traditional hot-dip galvanized! Save money upfront while ensuring long-term durability with no expensive post-galvanizing required. The smart, economical choice for solar projects.
oggetto numero :
LP-GM-03Ordine (MOQ) :
1 PCSPagamento :
TT,L/COrigine del prodotto :
Xiamen ChinaPorto di spedizione :
Xiamen ChinaTempi di consegna :
7-15 days
This Pile Driven Steel Ground Mount Structure is made with MG-Al-Zn (similar with Magnelis or ZAM) coated steel represents a significant advancement over traditional hot-dip galvanized (HDG) materials for ground solar mounting systems. Superior Corrosion Protection, the innovative coating delivers up to 5 times better corrosion resistance than standard galvanized steel. This pile mounting structure also highlight its lower cost per watt.
TECHNICAL INFORMATION
Install site ：Open Field
Wind Load: Up to 60m/s
Snow load: <1.4KN/m2
Module Type: Framed or Frame-less
Module Arrangement: Portrait or Landscape
Tilt Angle:0-65 deg. Design on request
Foundation: Pile Driven
Main Material ：Zn-Al-Coated Steel
Anti-corrosive: Zn-Al-Coated Steel
Certificate: CE Approved
Standard ：En 1090, AS/NZS 1170,DIN 1055, IBC 2006 and other international Standard
Warranty：12 years warranty and twenty- year service life

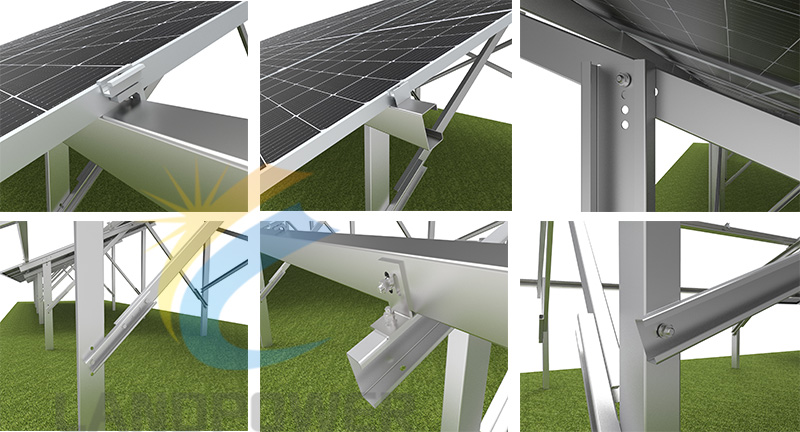

Detail Structure of Pile Ground Mounting Systems

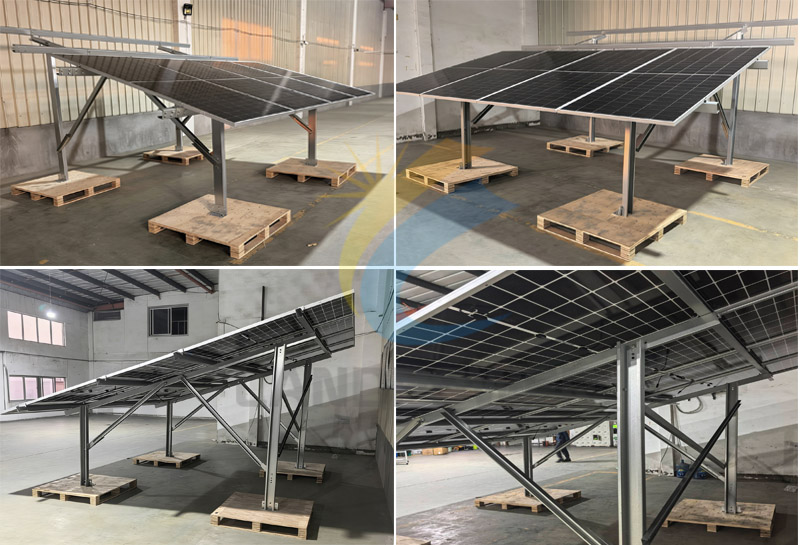

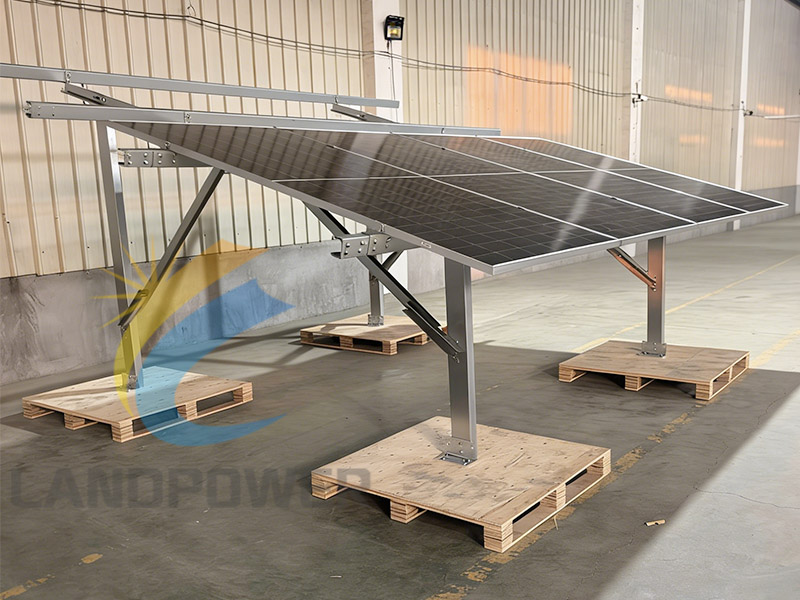

This steel ground mounting system has passed strict pull-out testing, making it ideal for many different project sites. Check out the test video:
